Name: Signal Poles

Display Field: Common_Name

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: Symbolized by Pole Type with 14 classes including all other values.

Copyright Text: Anne Arundel County Dept of Public Works, Bureau of Highways. The attributes and geometry of this feature class are maintained continually by the GIS personnel associated with the Bureau of Highways' Traffic Engineering Division.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 1200

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1357038.6865288913
YMin: 411395.1846797317
XMax: 1471396.982090056
YMax: 569606.3039523959
Spatial Reference: 2893  (2893)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Pole_Type
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Default Label:
UniqueValueInfos:
• Value: Mast Arm
  Label: Mast Arm
  Description: N/A
  Symbol:

• Value: Pedestrian - Pedestrian Signal Head
  Label: Pedestrian - Pedestrian Signal Head
  Description: N/A
  Symbol:

• Value: Pedestrian - Push Button Only
  Label: Pedestrian - Push Button Only
  Description: N/A
  Symbol:

• Value: Pedestrian - Radar Speed Flasher
  Label: Pedestrian - Radar Speed Flasher
  Description: N/A
  Symbol:

• Value: Pedestrian - Vehicular Signal Head
  Label: Pedestrian - Vehicular Signal Head
  Description: N/A
  Symbol:

• Value: Span Wire
  Label: Span Wire
  Description: N/A
  Symbol:

• Value: Flasher Pole
  Label: Flasher Pole
  Description: N/A
  Symbol:

• Value: AWS Only
  Label: AWS Only
  Description: N/A
  Symbol:

• Value: Camera
  Label: Camera
  Description: N/A
  Symbol:

• Value: Gated
  Label: Gated
  Description: N/A
  Symbol:

• Value: Local Base Station
  Label: Local Base Station
  Description: N/A
  Symbol:

• Value: Rain Gauge
  Label: Rain Gauge
  Description: N/A
  Symbol:

• Value: Square Channel
  Label: Square Channel
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementBelowCenter
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Tahoma
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 1000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Asset_ID ( type: esriFieldTypeString, alias: Asset ID, length: 50 )
• Created_By ( type: esriFieldTypeString, alias: Created By, length: 50 )
• Created_Date ( type: esriFieldTypeDate, alias: Created Date, length: 8 )
• Last_Edited_By ( type: esriFieldTypeString, alias: Last Edited By, length: 50 )
• Last_Edited_Date ( type: esriFieldTypeDate, alias: Edited Date, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Pole_Type ( type: esriFieldTypeString, alias: Pole_Type, length: 50 , Coded Values: [Flasher Pole: Flasher Pole] , [Mast Arm: Mast Arm] , [Pedestrian - Pedestrian Signal Head: Pedestrian - Pedestrian Signal Head] , ...10 more... )
• Common_Name ( type: esriFieldTypeString, alias: Common Name, length: 100 )
• Facility_ID ( type: esriFieldTypeString, alias: Facility ID, length: 50 )

Relationships:

• Highways.SDELOADER.Flasher_Locations (5) -- Related To: Flasher Locations (6)
• Highways.SDELOADER.Signalized_Intersections (3) -- Related To: Signalized Intersections (5)

Supported Operations:   Query   Query Attachments   Query Analytic   Query Related Records   Generate Renderer   Return Updates

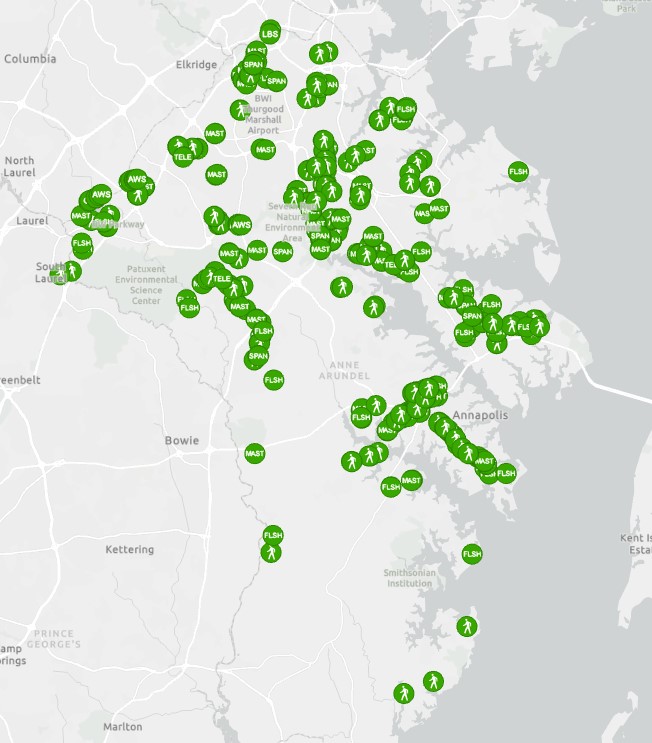

  Iteminfo   Thumbnail   Metadata
